Product information
Leading Global Chain Specialist: Engineered Chain Technology for over 125 years.

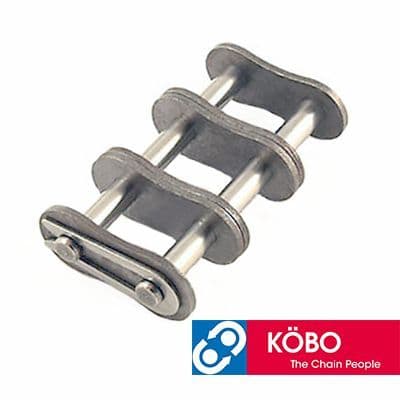

5/8" Pitch, American Standard, Triplex, Roller Chain Connecting Link, Kobo
| Chain Dimensions 50-3 | |
|---|---|
| ISO No. | 50-3 |
| p (mm) | 15.875 |
| b1 (mm min.) | 9.40 |
| b2 (mm max.) | 13.80 |
| d1 (mm hg) | 5.08 |
| d3 (mm max.) | 10.16 |
| F1 (mm max.) | 57.9 |
| F2 (mm min.) | 62.0 |
| h (mm max.) | 15.0 |
| s1 / s2 (mm) | 2.0 |
| e (mm) | 18.11 |
| Bearing Area (cm2) | 2.10 |
| Breaking Load (min.) | 66600 |
| Chain weight (kg/m) | 2.9 |
Technical specifications
| Brand | KOBO |
| Product Code | A503CO |
Customer reviews
RELATED PRODUCTS
-

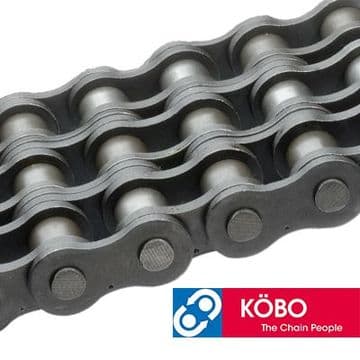

50-3 ASA Kobo Preium Chain 5mtr box
