Product information
Simply the best. Strong, powerful, even better in performance.
1-1/2" Pitch, American Standard, Triplex, Roller Chain, 10ft Box.
Synergy is the only true high-performance chain on the market. Engineers and maintenance professionals around the world endorse the wear resistance and exceptional working life of this remarkable chain technology. Newly specially formulated lubricant has improved initial wear life by up to 50%. Renold Synergy should be lubricated as normal when in operation.
| Chain Dimensions - 120-3 | |
| Pitch mm (A) | 38.100 |
| Pitch inch (A) | 1.500 |
| Inside Width mm (B) | 25.23 |
| Roller Diameter mm (C) | 22.23 |
| Plate Height mm (D) | 36.20 |
| Plate Width Inner (E) | 4.80 |
| Plate Width Inner (F) | 4.80 |
| Pin Diameter mm (G) | 11.11 |
| Pin Length mm (H3) | 140.2 |
| ISO Tensile Strength (Min) | 375000 |
| Weight Per Meter kg/m | 16.70 |
 | |
Technical specifications
| MPN | GY120A3X10FT |
| Brand | Renold Synergy |
| Product Code | GY120-3 |
Customer reviews
RELATED PRODUCTS
-

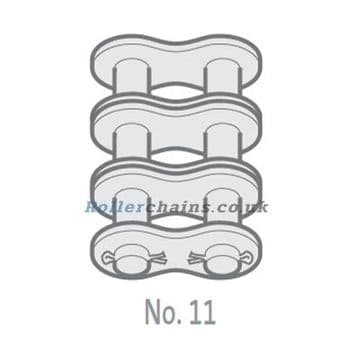

GY120-3-NO11 Chain Connecting Link, 1-1/2" Pitch ANSI, Triplex
£342.31Chain Connecting Link, 1-1/2" Pitch American Standard, Triplex, Renold Synergy -

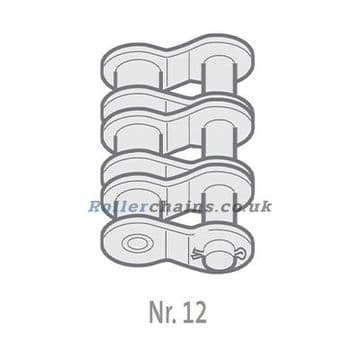

GY120-3-NO12 Chain Half Link, 1-1/2" Pitch ANSI, Triplex
