Product information
Leading Global Chain Specialist: Engineered Chain Technology for over 125 years.

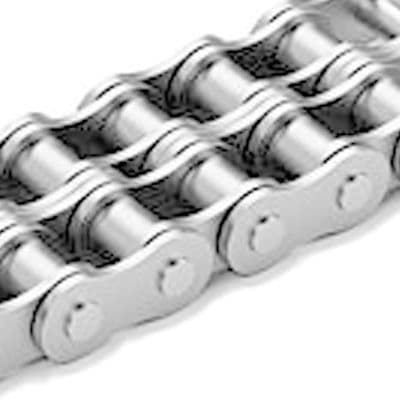

5/8" Pitch, British Standard, Duplex, Roller Chain, Kobo, 5mtr Box
| Chain Dimensions 10B-2 | |
|---|---|
| ISO No. | 10B-2 |
| p (mm) | 15.875 |
| b1 (mm min.) | 9.65 |
| b2 (mm max.) | 13.28 |
| d1 (mm hg) | 5.08 |
| d3 (mm max.) | 10.16 |
| F1 (mm max.) | 36.2 |
| F2 (mm min.) | 40.3 |
| h (mm max.) | 14.7 |
| s1 (mm) | 1.60 |
| s2 (mm) | 1.60 |
| e (mm) | 16.59 |
| Bearing Area (cm2) | 1.34 |
| Breaking Load (min.) | 44500 |
| Chain weight (kg/m) | 1.85 |
10B-2 DIN 8187 - European B series: The most common type of drive chains.
The 10B roller chains are designed for general use especially in light and medium industry.
Technical specifications
| MPN | 20332000 |
| Brand | KOBO |
| Product Code | B10B2CH |
Customer reviews
RELATED PRODUCTS
-

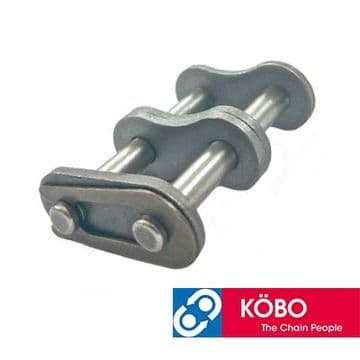

10B-2 Kobo Duplex Connecting Link, 5/8" Pitch BS
£1.025/8" Pitch, British Standard, Duplex, Roller Chain Connecting Link, Kobo -

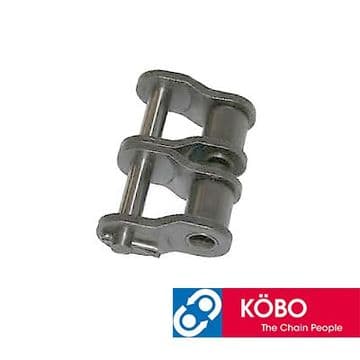

10B-2 Kobo Duplex Crank Link, 5/8" Pitch BS
